Purified 4 Standmount (pair)
Purified 4 Standmount (pair)
Price per pair, sold per pair
Final price may change based on shipping destination at checkout.
Couldn't load pickup availability
All loudspeakers are made-to-order
Expect 4 to 8 weeks lead time
Share
Description
General
The Purified 4 is a modular loudspeaker system designed to be driven active with your own crossover and amplifiers, or our Plug & Play solution. The internal aluminum enclosure reduces unwanted resonances to a minimum while the external spherical shape ensures the most uniform radiation pattern. As a result you get an exceptionally linear frequency response with razor-sharp imaging within a large soundstage. The smoothness and lucidity of the sound are phenomenal. Furthermore, the ultra low distortion drivers deliver an uncompressed, big and organic sound. The Purified 4 is designed to be used as a satellite in a high-performance, full-range active sub-sat system.
(*) External net volume including the dedicated stand is only 8,5 liter!
Driver variants
Available with a Purifi 4-inch Aluminum or Fiber Paper Mix woofer and BlieSMa 25 mm Aluminum-Magnesium or Beryllium tweeter. These state of the art drivers have a very low non-linear distortion while able to produce high SPL and excellent dynamics.
Crossover
For each variant a measurement data set and reference crossover design (DSP parameters) are included in the delivery. The crossover design is fine tuned to deliver you the best tonality. The smooth directivity supports a very effective room correction or EQ if needed.
Finishes
As a surface finish of the top unit you have a hardwood or a high quality black plastic cover to choose from.
Optional Plug & Play Solution
If you do not wish to configure a DSP crossover then our DSP Integrated Amplifier with pre-installed DSP profile is a solution for you.

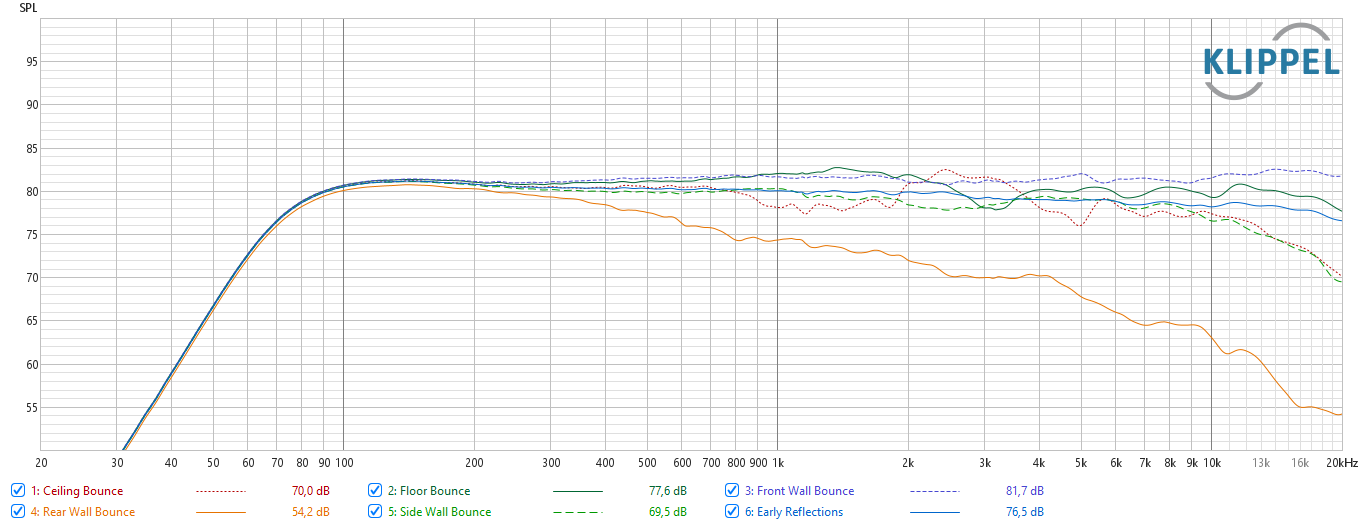

SPL Horizontal [XP25B - 1/24 oct. smoothing - measured @ 1 meter]
Woofer Module
General specifications
- Driver options: PURIFI 4" Ultra Low Distortion Extended Woofer (OEM), with PP-coated paper/fiber mix or aluminum cone
- Impedance: 4Ω
- Sensitivity (2.83Vrms/1m): 84dB
- Long term maximum power: 200W
- Surface cover options: Bloodwood solid wood or Black thermoplastic cover, sandwiched between a Jet Black powder coated aluminum front and rear baffle
- Shape: Spherical outside, cylindrical inside
- Diameter: 222 mm
- Wall (inside): 5 mm aluminium with cork-rubber mix between wall and cover
- Front: 25 mm aluminum
- Rear: 23 mm aluminum
- Alignment: Sealed B2 | Qtc ≈ 0.707
- Damping: TWARON® Angel Hair
- Loudspeaker terminals: WBT 703Cu & WBT 718 assembly
- Internal wiring: OFC
Solid wood or plastic cover on top of aluminium enclosure
Your Purified 4 will have its own distinctive appearance as each solid wood panel is unique. During the manufacturing process, we match enclosure pairs, to ensure each pair has a similar look. However, no pair will look exactly the same. We like you to be aware of this before buying.
Solid wood is a living material that will change over time. Because of variation in humidity and temperature the wood will expand and contract. Hairline cracks are typical for solid wood and to be expected. The Purified 4 is carefully constructed to avoid breakage as the wood ages. Several pieces of cork-rubber are placed between the aluminium cylinder and the solid wood to absorb any expansion or contraction.
If a fancy look has no priority with you, we do offer a high quality thermoplastic black finish too, it is more budget friendly without compromising on performance!
Internally, the top unit of the Purified 4 is made out of aluminum, in order to increase the stiffness and strength of the enclosure. The end result is an acoustically inert enclosure which ensures that all you hear is the sound of the exceptional PURIFI driver.
Datasheets
- Purifi Extended Woofer PP Coated Fiber Paper Mix - PTT4.0X04-NLC-02
- Purifi Extended Woofer Black Anodized Aluminum - PTT4.0X04-NAC-04
Tweeter Module
General specifications
- BlieSMa 25mm Aluminum-Magnesium or Beryllium Dome Tweeter
- Enclosure material: CNC machined solid aluminum
- Finish: Jet Black powder coated
- Dimensions: Ø 178 mm, 30 mm depth
- Wiring: OFC, with push-on connectors and threaded protection cover
Datasheets
- BlieSMa T25A-6 25mm Aluminum-Magnesium Alloy Dome Tweeter
- BlieSMa T25B-6 25mm Beryllium Dome Tweeter
Stand
General specifications
- Tri-Pod
- Steel frame with rubber dampers on top and bottom (M8)
- Mounting hole to secure the spherical woofer module
- Jet Black powder coated
- Demountable design, two parts
- Fixed WBT-703Cu pole terminals for tweeter module
- Height (with speakers mounted): 880 mm
- Depth: 280 mm
- Width: (base) 310 mm

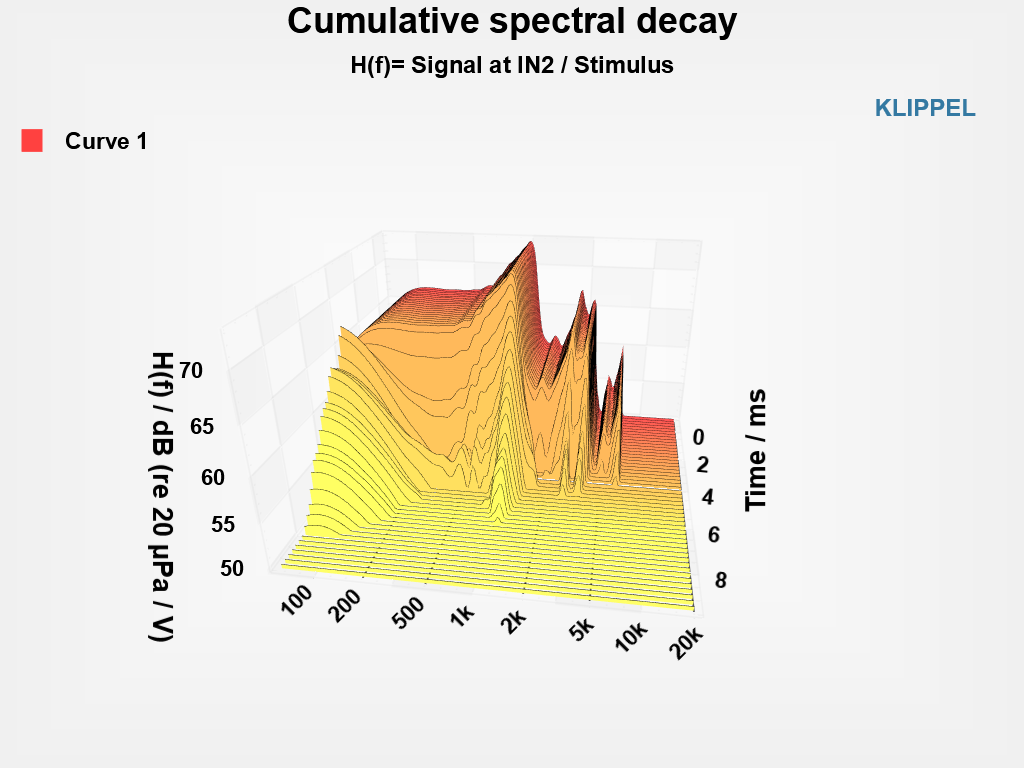

Measurements
General specifications
- Measured with a Klippel NFS
- Sensitivity
- Impedance
- THD(f) at different levels
- Directivity (on-axis and the off-axis measurements)
Measurements of variant
Purifi PTT4.0X04-NLC + BlieSMa T25B-6
Purifi PTT4.0X04-NAC + BlieSMa T25B-6
Purifi PTT4.0X04-NLC + BlieSMa T25A-6
Purifi PTT4.0X04-NAC + BlieSMA T25A-6
Crossover
Each variant will be delivered with a reference crossover design optimized for the best tonal balance.
You can transfer the crossover parameters, like slope, gain, delay and so on, to your DSP for a quick start. And together with the measurement data set you are able simulate (with for example VituixCAD) and customize the crossover to your specific goals.
(1/12 oct smoothing)
