Purified 4 (pair)
Purified 4 (pair)
Price per pair, sold per pair
Final price may change based on shipping destination at checkout.
All loudspeakers are made-to-order
Expect 4 to 8 weeks lead time
Share
Description
General

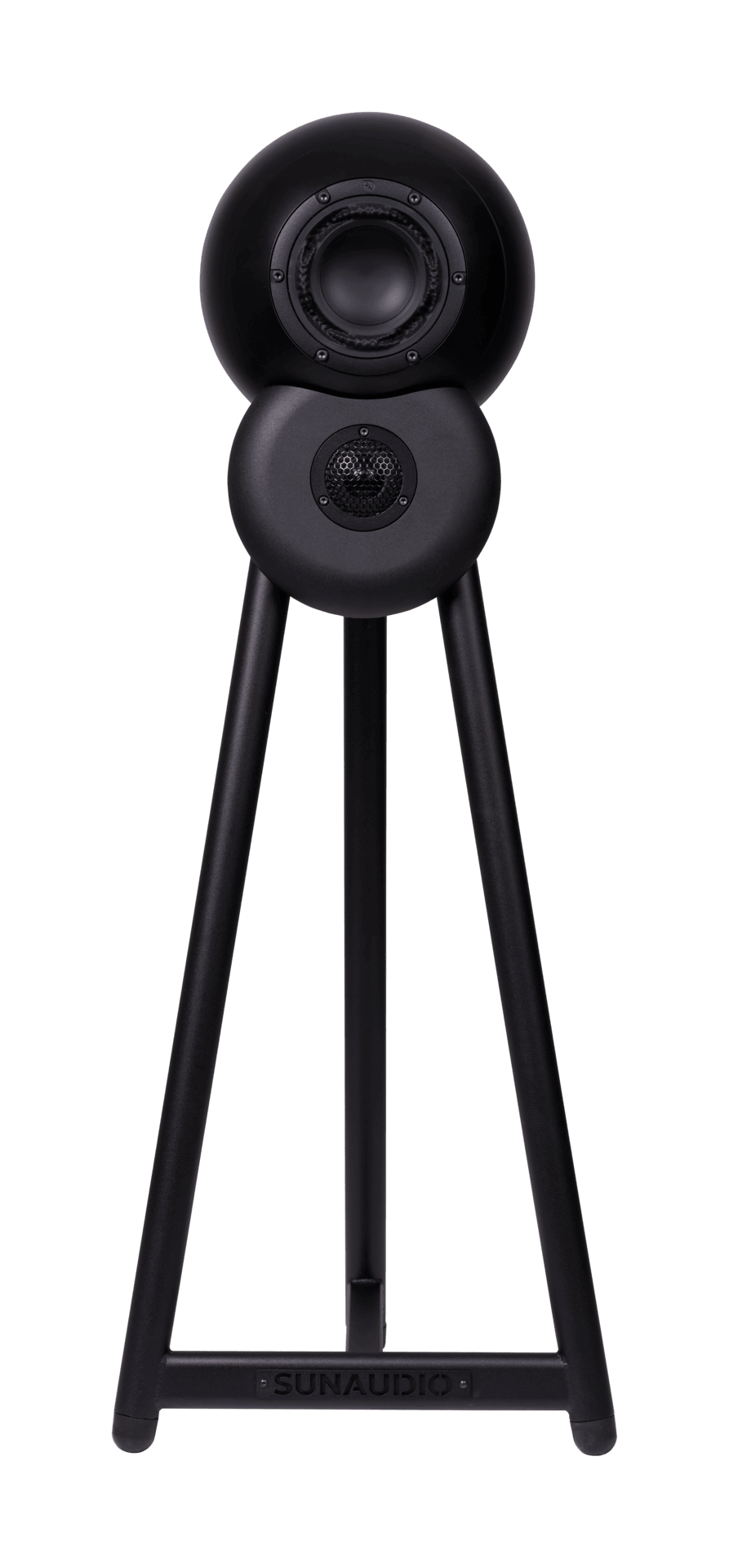

The Purified 4 is a crossoverless modular loudspeaker system designed to be driven active with your own crossover and amplifiers. It has a full aluminium enclosure on the inside to minimize resonances. And a spherical shape on the outside for a smooth diffraction pattern.
Driver variants
Available with a selection of four Purifi 4-inch drivers and five BlieSMa 25 or 34 mm tweeters, thus twenty variants. For each variant a measurement data set and reference crossover design (DSP parameters) are included in the delivery.
Finishes

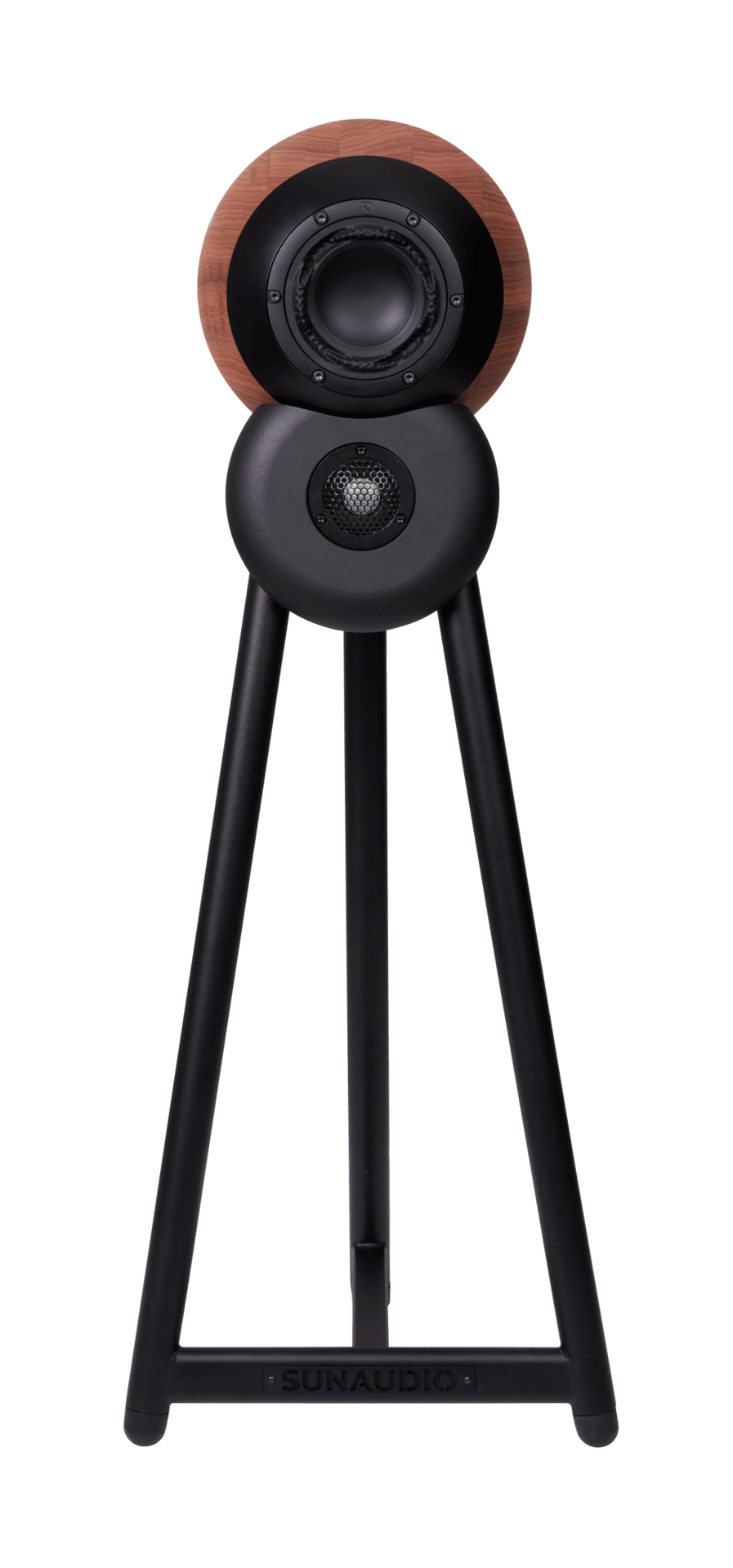

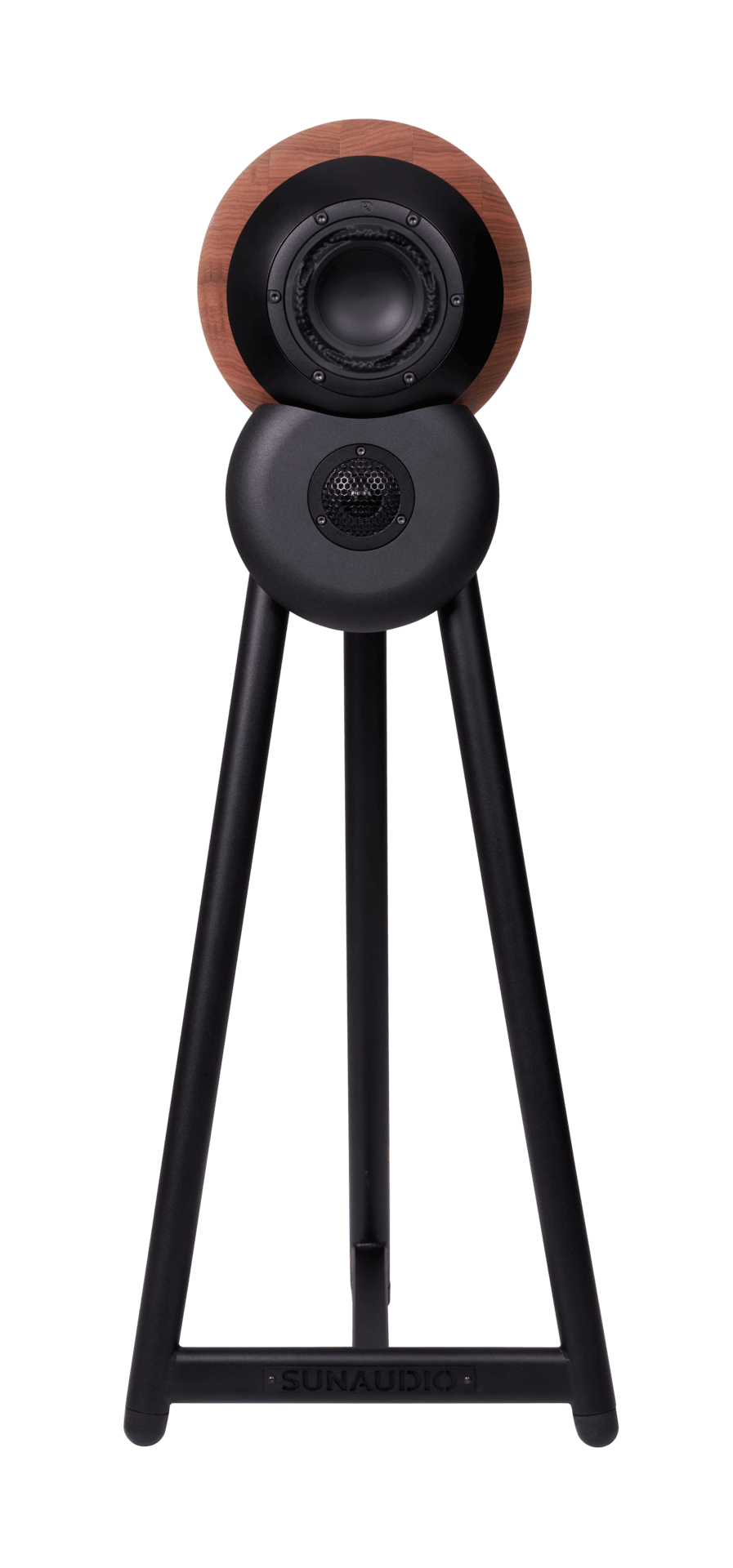

As a surface finish of the top unit you have a hardwood or a high quality black plastic cover to choose from.
Optional Plug & Play Solution
If you do not want to setup a DSP then our DSP Integrated Amplifier is a solution for you.
Woofer or Midrange Module
General specifications
- Driver options: PURIFI 4" Ultra Low Distortion Extended Woofer or Midrange (OEM), with PP-coated paper/fiber mix or aluminium cone
- Impedance: 4Ω
- Long term maximum power: 200W
- Surface options: Bloodwood solid wood or Black thermoplastic cover, sandwiched between a Jet Black powder coated aluminum front and rear baffle
- Shape: Spherical outside, cylindrical inside
- Diameter: 222 mm
- Wall (inside): 5 mm aluminium with cork-rubber mix between wall and cover
- Front: 25 mm aluminium
- Rear: 23 mm aluminium
- Alignment: Sealed B2 | Qtc ≈ 0.707 (*)
- Damping: TWARON® Angel Hair

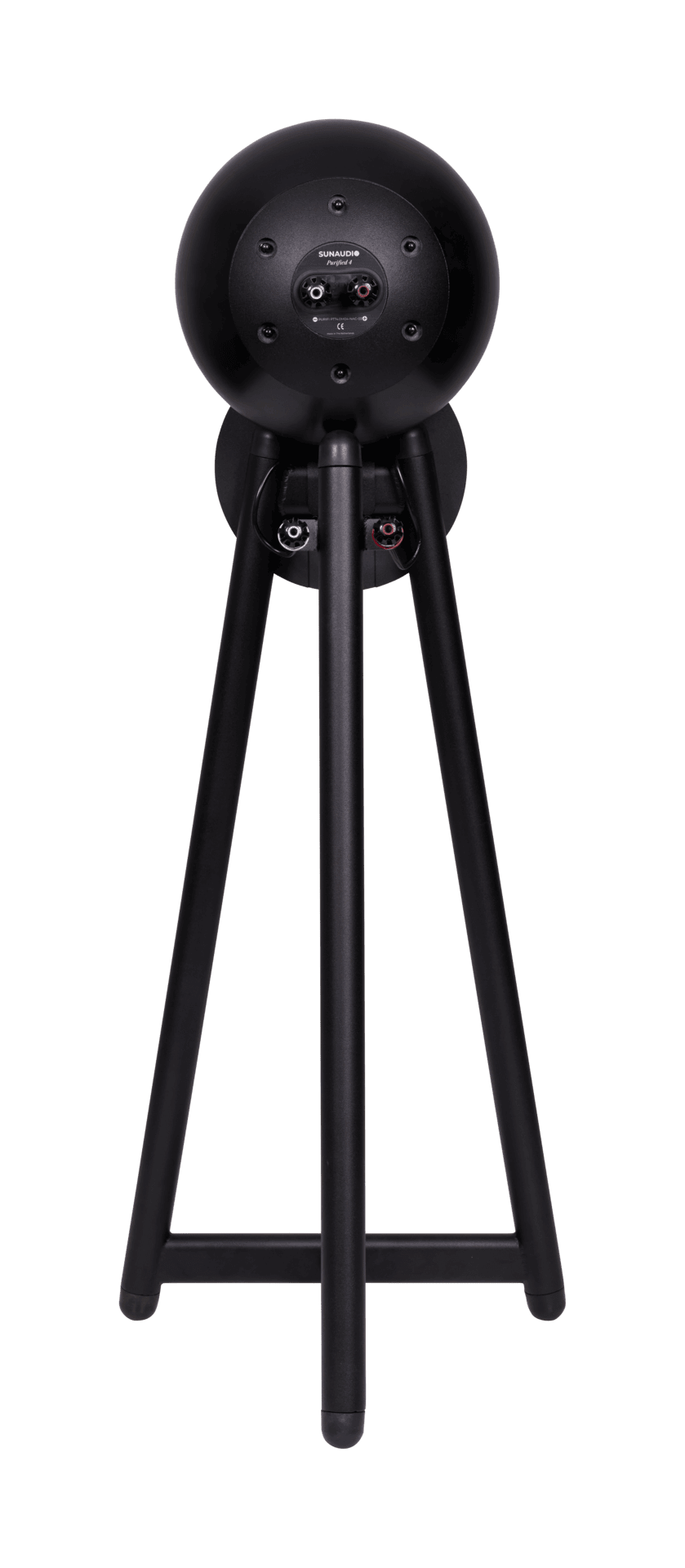

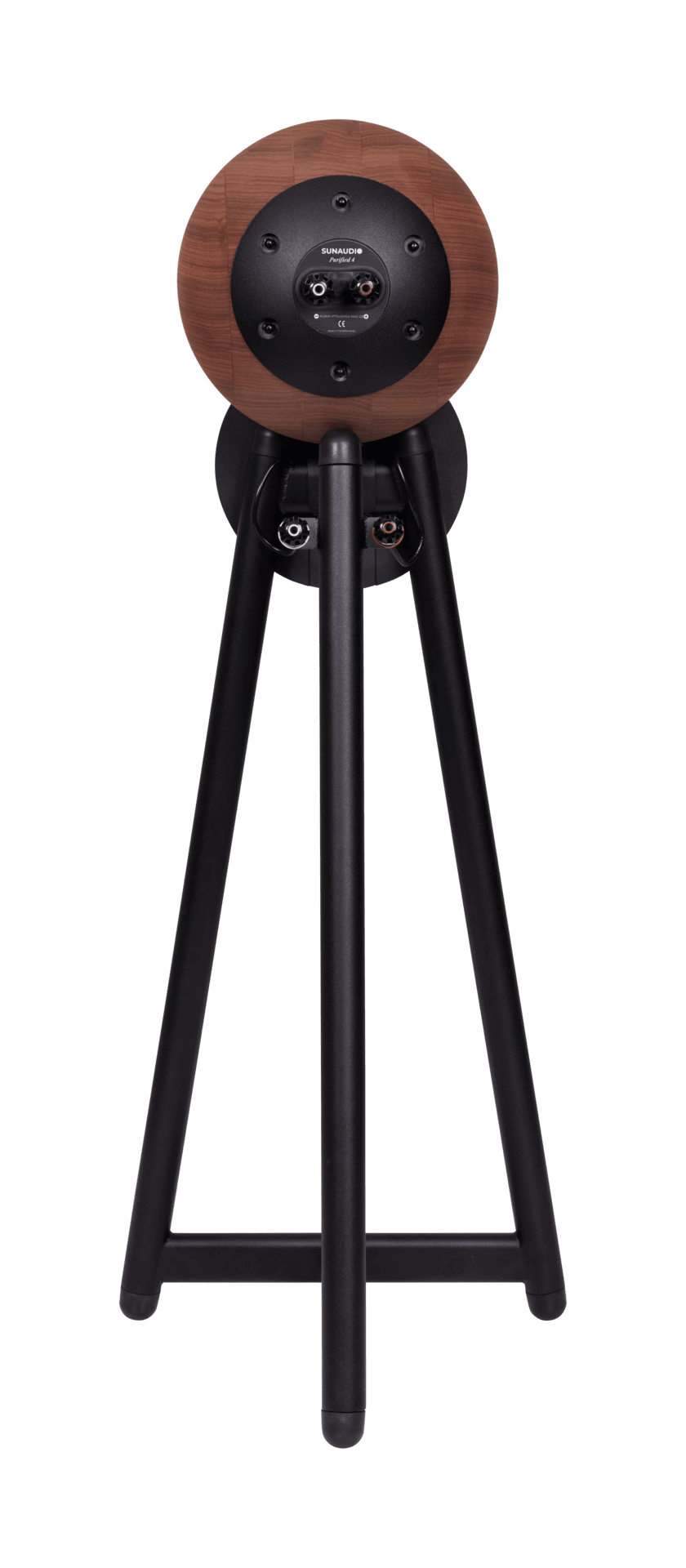

- Loudspeaker terminals: WBT 703Cu & WBT 718 assembly
- Internal wiring: QED OFC
(*) Internal volumes will be matched with the PURIFI driver you select, all will be tuned to a Butterworth (B2) | Qtc ≈ 0.707 'maximally flat response' alignment.

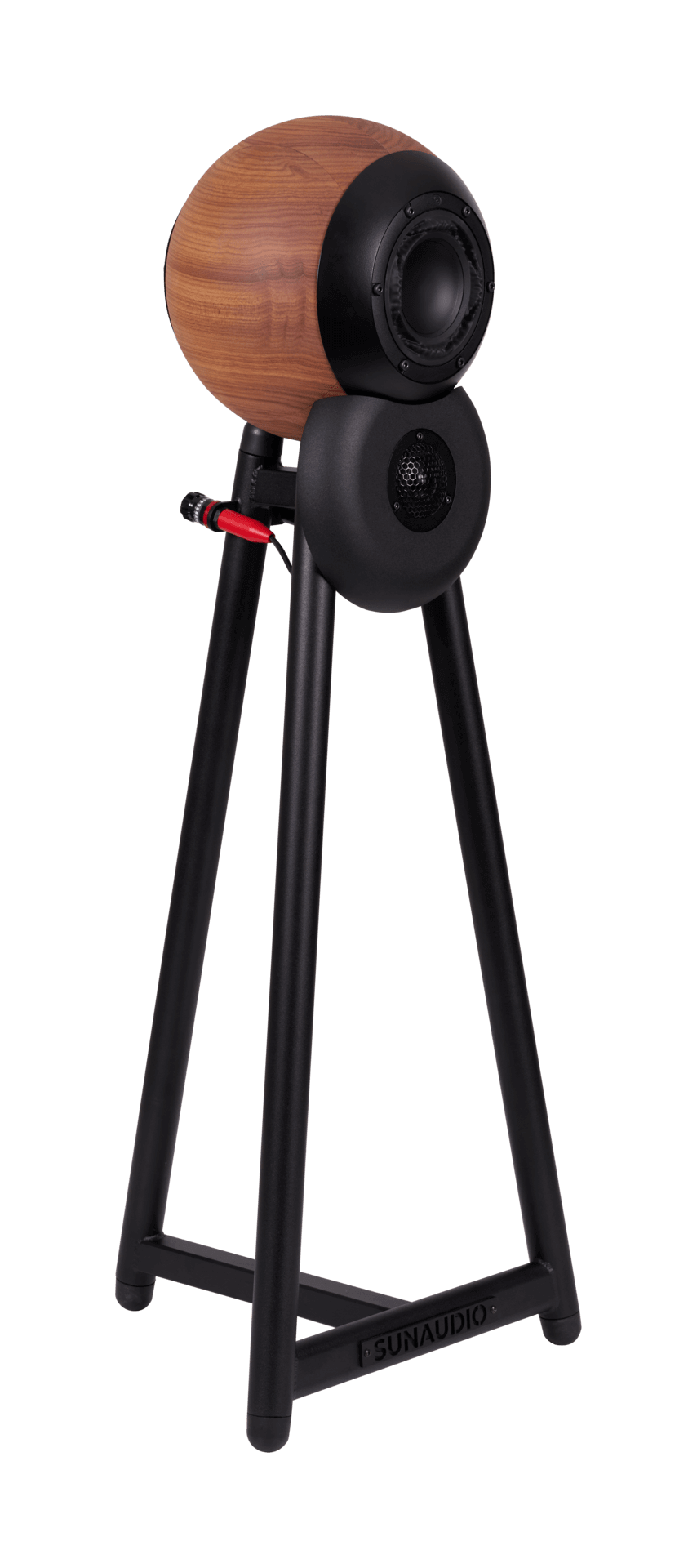

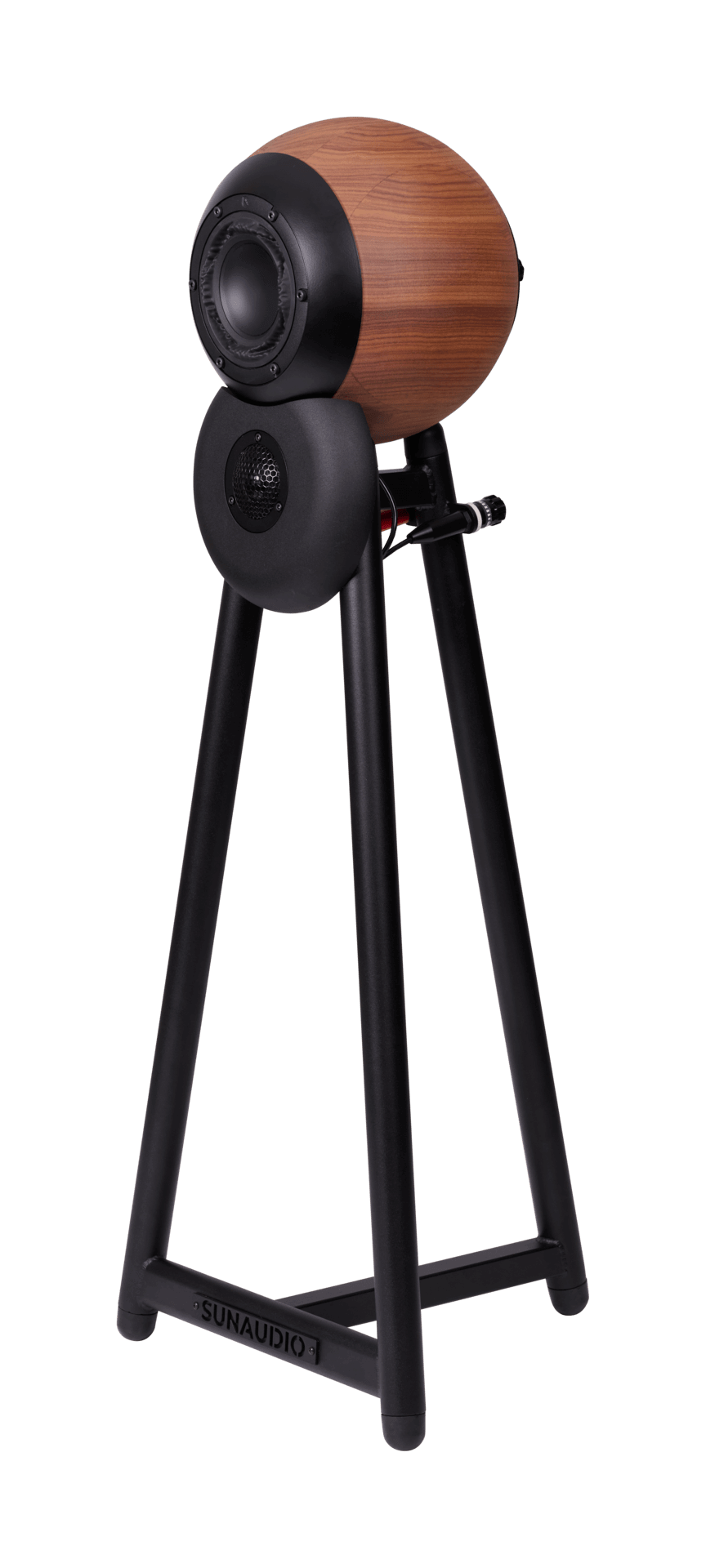

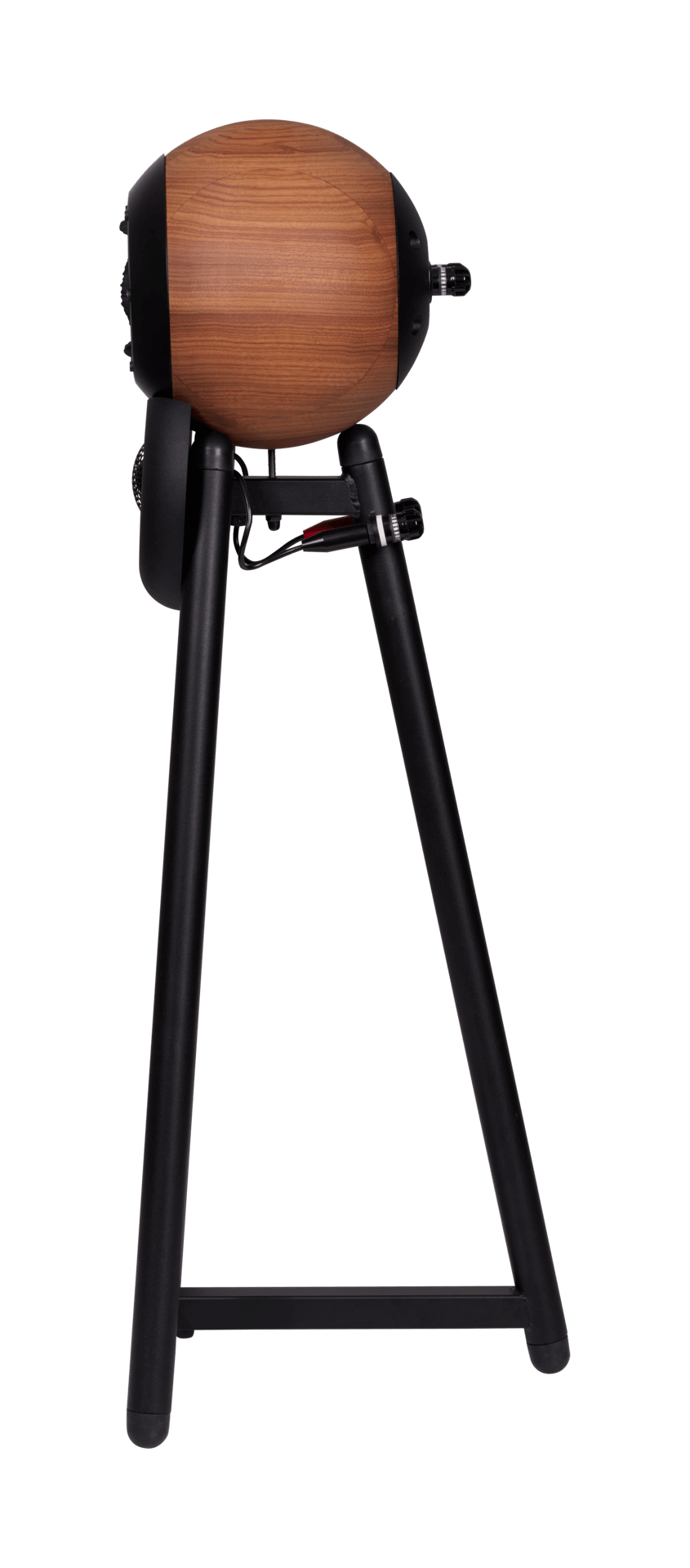

Solid wood or plastic cover on top of aluminium enclosure
Your Purified 4 will have its own distinctive appearance as each solid wood panel is unique. During the manufacturing process, we match enclosure pairs, to ensure each pair has a similar look. However, no pair will look exactly the same. We like you to be aware of this before buying.
Solid wood is a living material that will change over time. Because of variation in humidity and temperature the wood will expand and contract. Hairline cracks are typical for solid wood and to be expected. The Purified 4 is carefully constructed to avoid breakage as the wood ages. Several pieces of cork-rubber are placed between the aluminium cylinder and the solid wood to absorb any expansion or contraction.

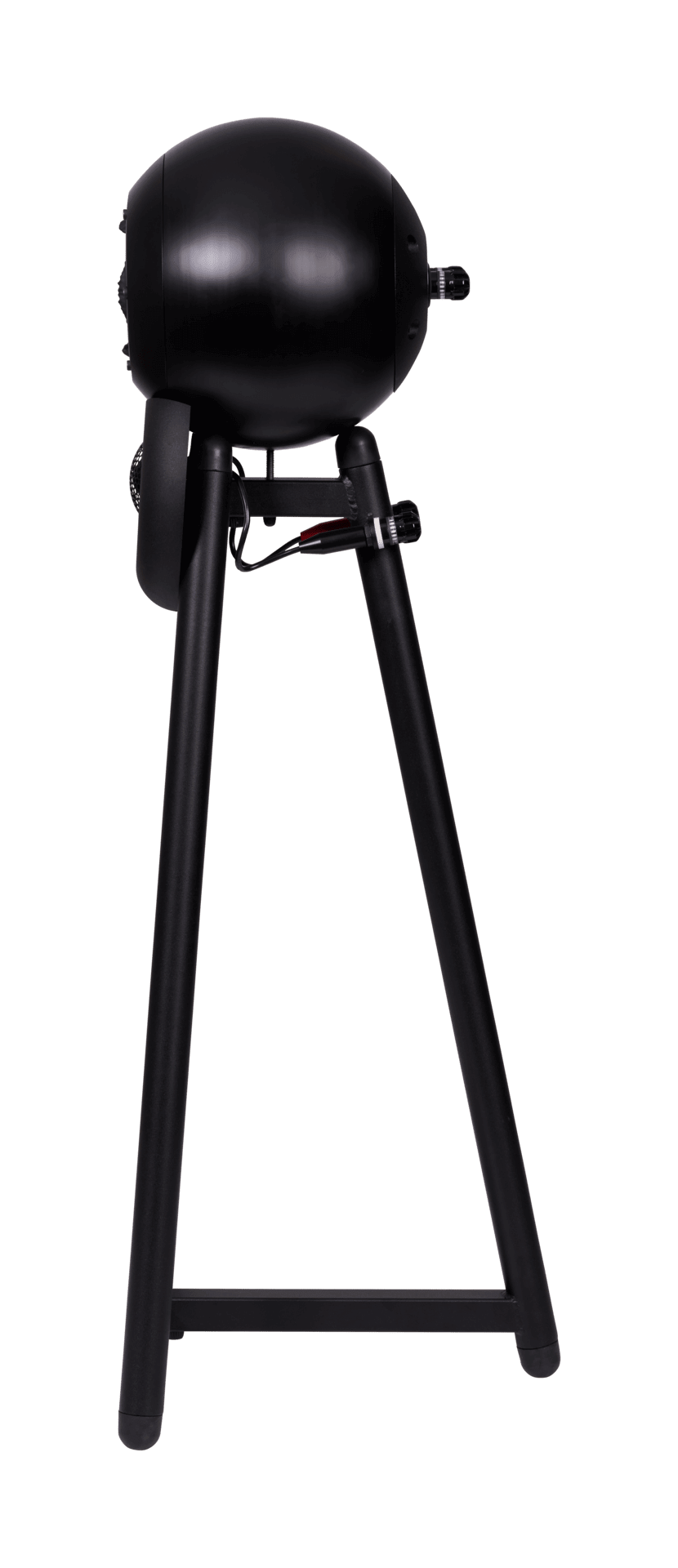

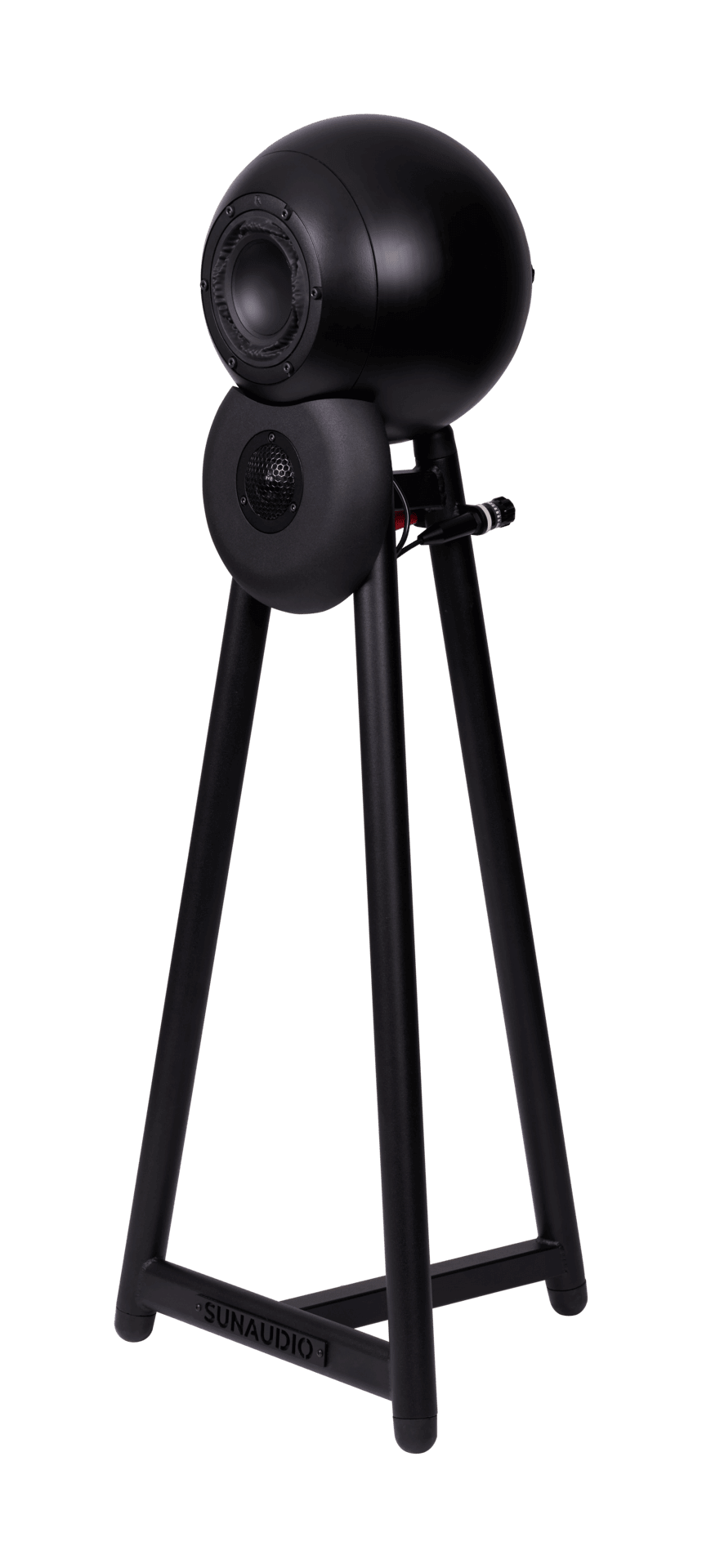

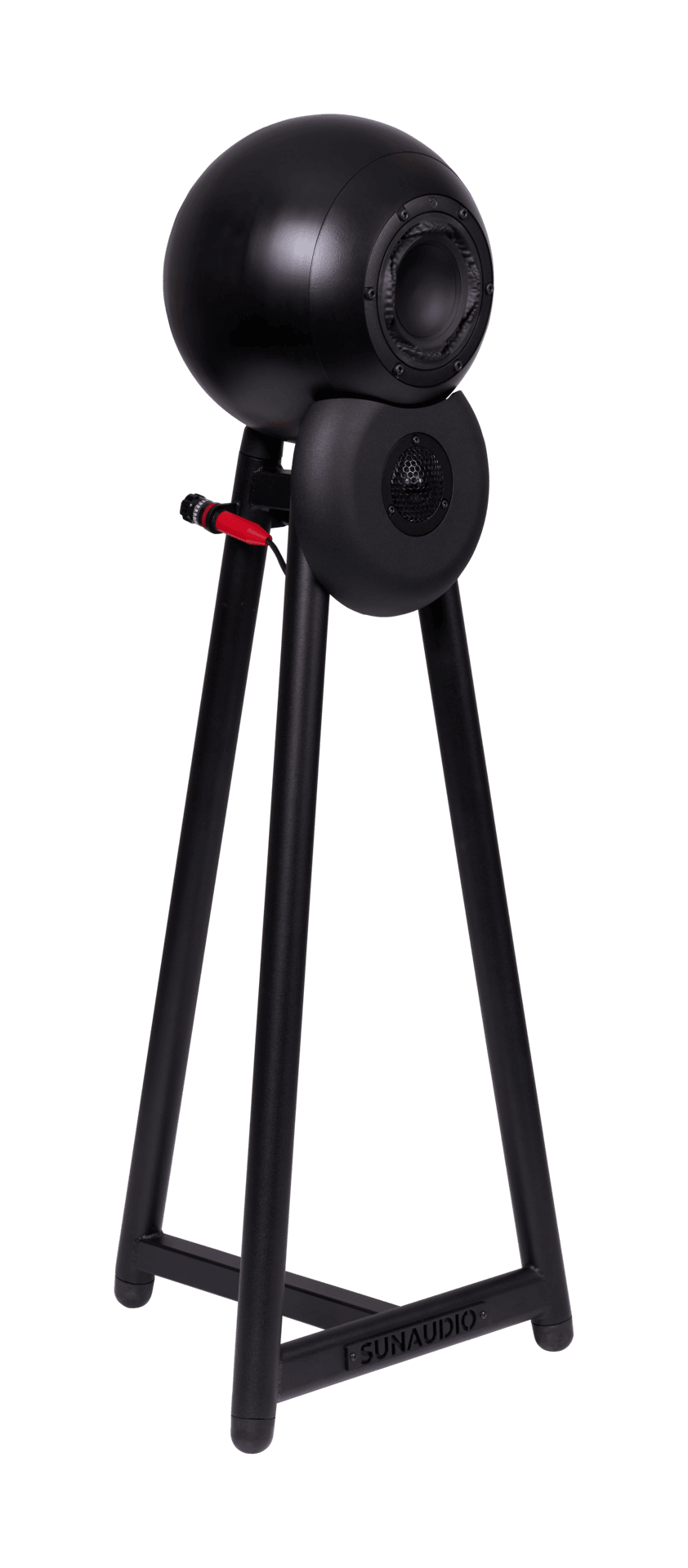

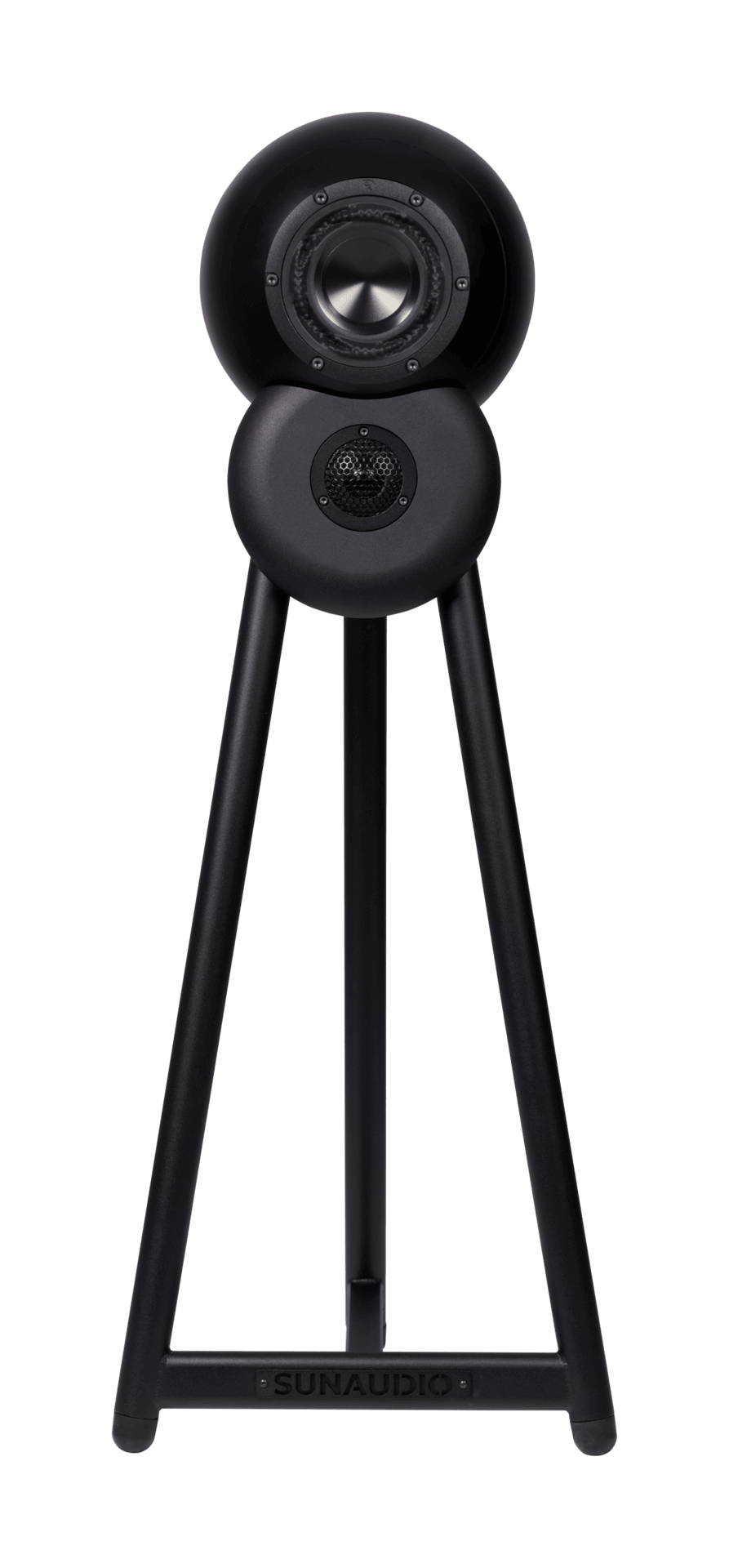

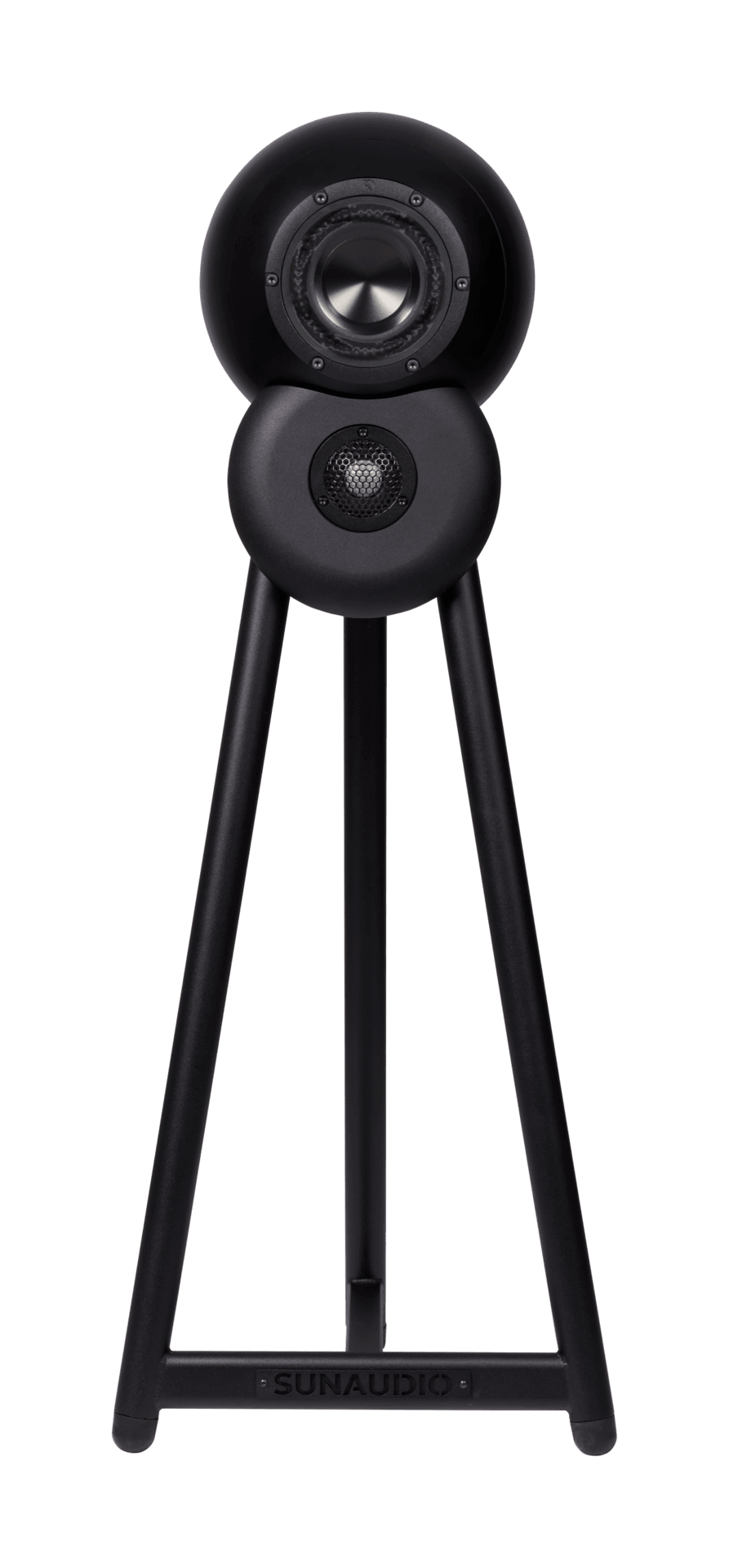

If a fancy look has no priority with you, we do offer a high quality thermoplastic black finish too, it is more budget friendly without compromising on performance!
Internally, the top unit of the Purified 4 is made out of aluminium, in order to increase the stiffness and strength of the enclosure. The end result is an acoustically inert enclosure which ensures that all you hear is the sound of the exceptional PURIFI driver.
Purifi Extended Woofer or Purifi Midrange
Keep in mind that with the midrange drivers you will need a subwoofer close to each Purified 4 (so you need at least two subwoofers), while with the extended woofer you only need one subwoofer as you can cross over low enough to keep it acoustically invisable.
Datasheets
- Purifi Extended Woofer PP Coated Fiber Paper Mix - PTT4.0X04-NLC-02
- Purifi Extended Woofer Black Anodized Aluminum - PTT4.0X04-NAC-04
- Purifi Midrange PP Coated Fiber Paper Mix - PTT4.0M04-NLC-02
- Purifi Midrange Black Anodized Aluminum - PTT4.0M04-NAC-04
Tweeter Module
General specifications
- Five BlieSMa models available
- Enclosure material: CNC machined solid aluminium
- Finish: Jet Black powder coated
- Dimensions 25 mm unit: Ø 178 mm, 30 mm depth
- Dimensions 34 mm unit: Ø 178 mm, 34 mm depth
- Wiring: QED OFC, with WBT push-on connectors and threaded protection cover
Our tweeter enclosures are undergoing a redesign! The 25 mm has been finished and measured again, the results are excellent. Next will be the enclosure for the 34 mm tweeters. One of the advantages of a modular system is that most parts can be replaced very easy.
Datasheets
- BlieSMa T34A-4 34mm Aluminum-Magnesium Alloy Dome Tweeter
- BlieSMa T34B-4 34mm Beryllium Dome Tweeter
- BlieSMa T25S-6 25mm Silk Dome Tweeter
- BlieSMa T25A-6 25mm Aluminum-Magnesium Alloy Dome Tweeter
- BlieSMa T25B-6 25mm Beryllium Dome Tweeter
Stand
General specifications
- Tri-Pod
- Steel frame with rubber dampers on top and bottom
- Mounting hole to secure the spherical woofer or midrange module
- Jet Black powder coated
- Demountable design, two parts
- Fixed WBT-703Cu pole terminals for tweeter module
- Height (with speakers mounted): 88 cm
- Depth: 28 cm
- Width: (base) 31 cm
Measurements
General specifications
- Measured in a class 1 semi-anechoic chamber from IFAA
- Sensitivity
- Impedance
- THD(f) at different levels
- horizontal directivity horizontal (on-axis and the off-axis measurements)
- vertical directivity (on-axis and the off-axis measurements)
CEA-2034 of variant
Purifi PTT4.0X04-NLC + BlieSMa T25A-6
Raw measurement plots & data for each driver in cabinet
- Purifi PTT4.0X04-NAC-04
- Purifi PTT4.0X04-NLC-02
- Purifi PTT4.0M04-NAC-04
- Purifi PTT4.0M04-NLC-02
- BlieSMa T25A-6
- BlieSMa T25B-6
- BlieSMa T25S-6
- BlieSMa T34A-4
- BlieSMa T34B-4
Crossover
Each variant will be delivered with an optimized reference crossover design made by Peter Larsen from Loudsoft based on measurements performed in a class 1 semi-anechoic chamber from IFAA .
You can transfer the crossover parameters, like slope, gain, delay and so on, to your DSP for a quick start. And together with the measurement data set you are able simulate (with for example VituixCAD) and customize the crossover to your specific goals.
More info about the design philosophy applied to the crossover designs:
Digital X-Over and DSP Simulations by Peter Larsen, Loudsoft (PDF)
Purifi PTT4.0X04-NAC-04 + BlieSMa T25A-6 optimized with Loudsoft
